Innovation Center
Custom Designed Filter Pressing Equipment
DESCRIPTION

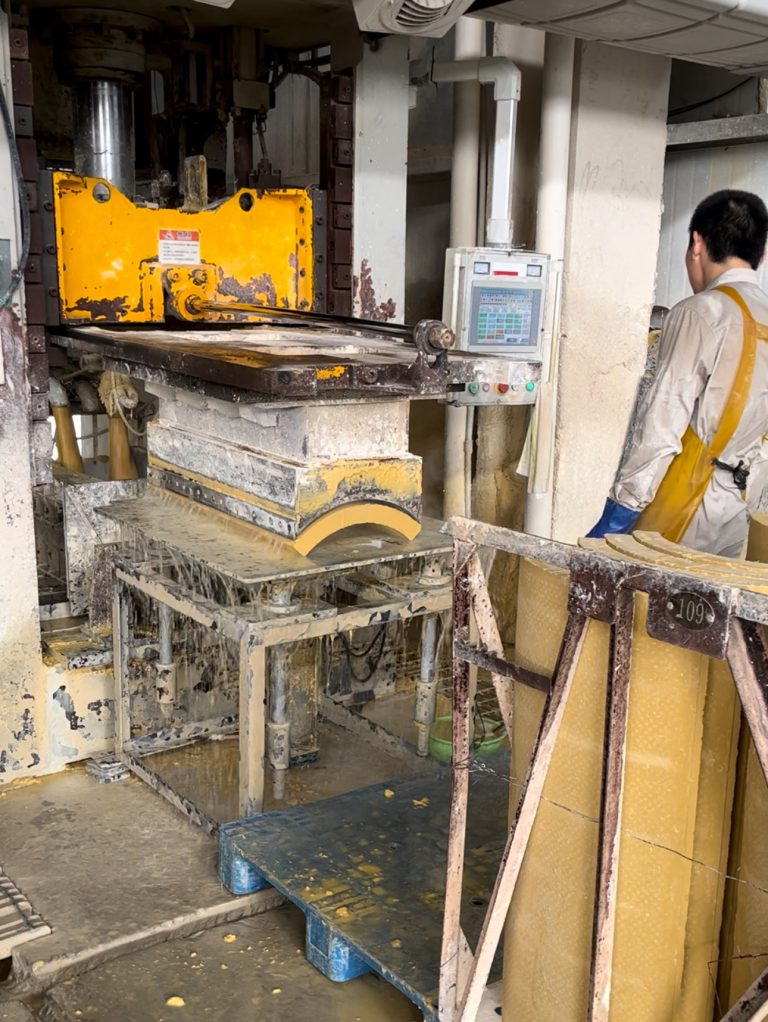

BEC’s new Jiangsu factory utilizes 4 sets of 150 ton capacity filter pressing equipment. They are specifically designed to hydraulically press the pipe cover and block thermal insulation which is built to meet or exceed global standards for calcium silicate.
The specially engineered filter pressing molds are machined with thousands of tiny holes that allow all of the air and most of the water to be expunged under the load of the press. This eliminates all the voids, pinholes and fissures that are common with non filter pressed calcium silicate products and produces the world’s strongest type I calcium silicate.
ADVANTAGES
The loading and batching of the raw materials are computer controlled in order to produce the calcium silicate densities from 170kg/m3(±10%) to 300kg/m3(±10%).

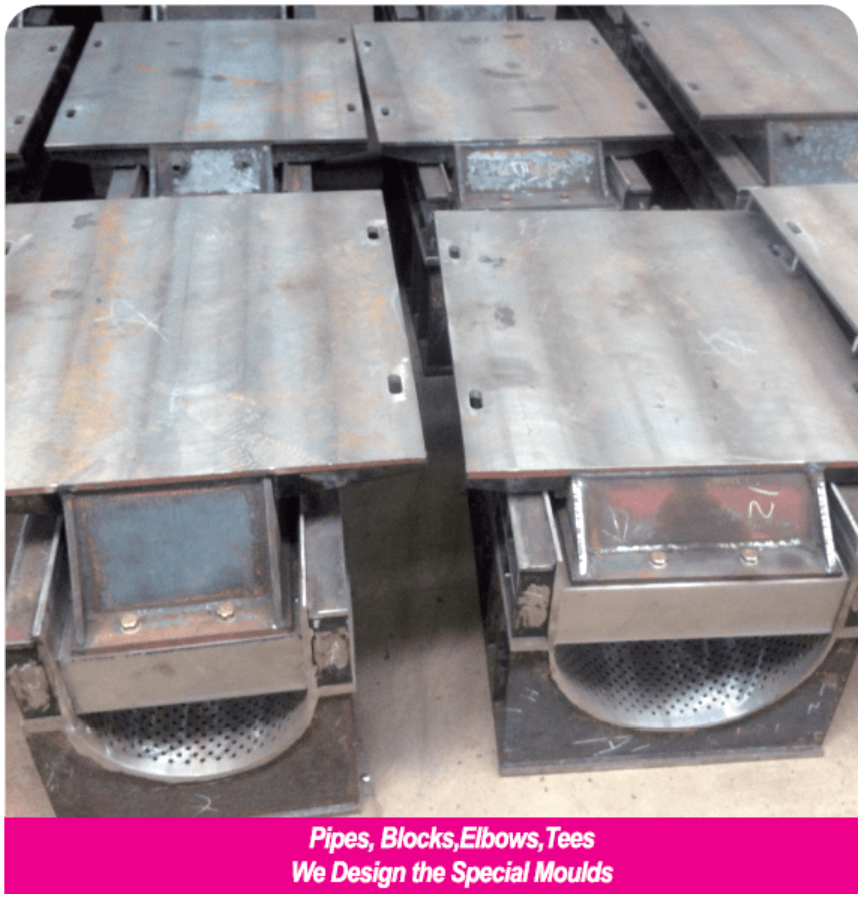

Pipe Cover, Block, Elbows,Tees
DESCRIPTION
In order to meet the requirements of calcium silicate standard all over the world, our new factory engineered and procured advanced molds specially designed to produce the calcium silicate product which meets all the standard including the ASTM C585 in both 915 mm and 600 mm long sections. We can also fabricate mitered fittings including elbows, tees, caps, reducers, valve covers which are built to meet the customers requirements.
ADVANTAGES
- Calcium Silicate Density from 170kg/m3(±10%) to 300kg/m3(±10%)
- Pipe cover sizes from 1/4 inch (15mm) to 126inch(3200mm)
- Block width from 150mm to 610mm and thickness from 25mm 152mm

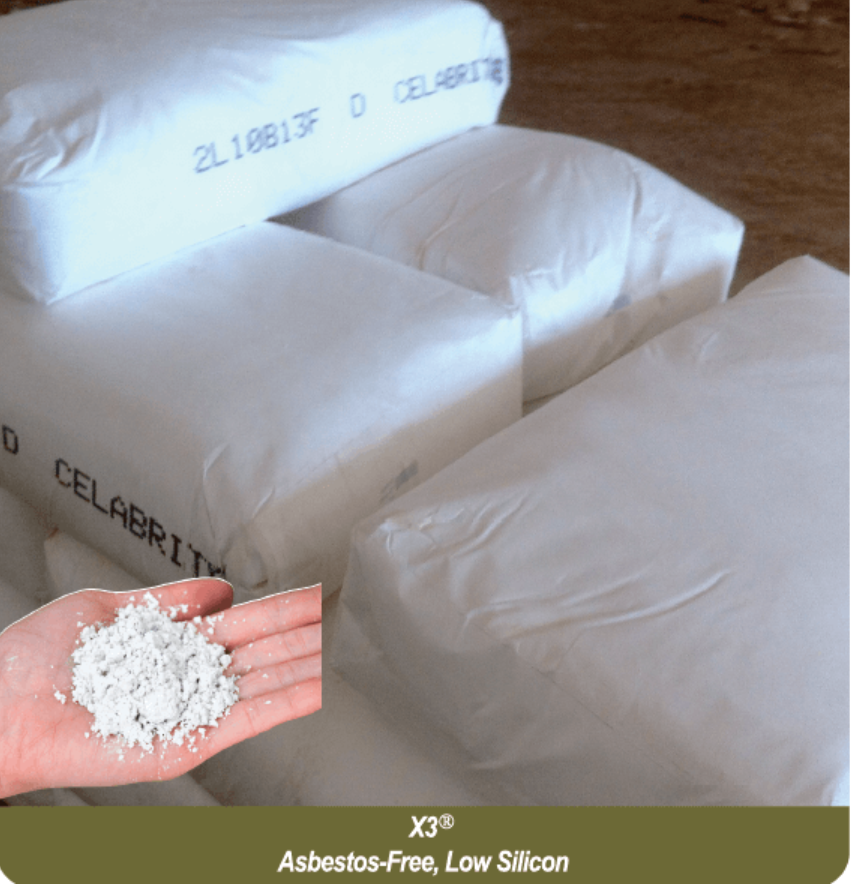

X3® Asbestos-Free, Low Silicon
DESCRIPTION
X3® is a hydrated, naturally-occurring volcanic rock. Its unique structure consists of numerous concentric layers, similar to the layers in an onion. Its natural color ranges from light pearl gray to dark gray. The expansion is due to the presence of water (nearly 5%) trapped in the crude ore.
When processed at proper temperature, the crude ore “pops” in a manner similar to popcorn. During the material processing, the combined water vaporizes, creating countless tiny bubbles that account for the amazing light weight and other exceptional properties of X3®.
X3R filter aids are available in a full range of grades with specific perm abilities which produce varying degrees of clarification. The products are functionally similar to DE filter aids; however, they typically have bulk densities about half that of DE. X3® is used to filter juices, waste water, beverages, and industrial chemicals. They are produced from inert silicate minerals and meet the purity requirements of many applications, except those requiring the highest degree of clarification (such as polishing).
• The white color provides positive identification that it is asbestos-free and low silica.

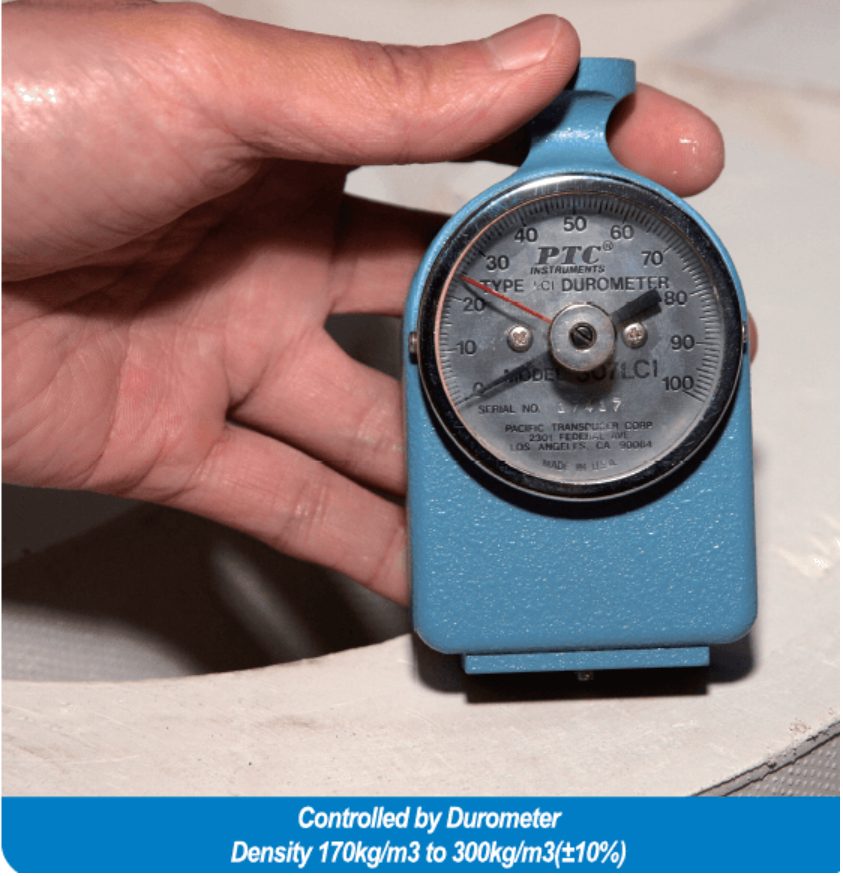

Controlled by Durometer Density 170kg/m3 to 300kg/m3(±10%)
DESCRIPTION
In order to ensure every or average pieces density of calcium silicate can meets the ASTM C533, the Durometer is specially designed to measure the indentation hardness of medium hard rubber, elastomers, and thermoplastics and other similar Type C materials which is built to meet or exceed current ASTM D2240 and ISO 868 specifications, and can be used either with a test stand or as a hand-held unit.
ADVANTAGES
• Calcium Silicate Density from 170kg/m3(+10%) to 300kg/m3 (±10%) which can be tested by Durometer.

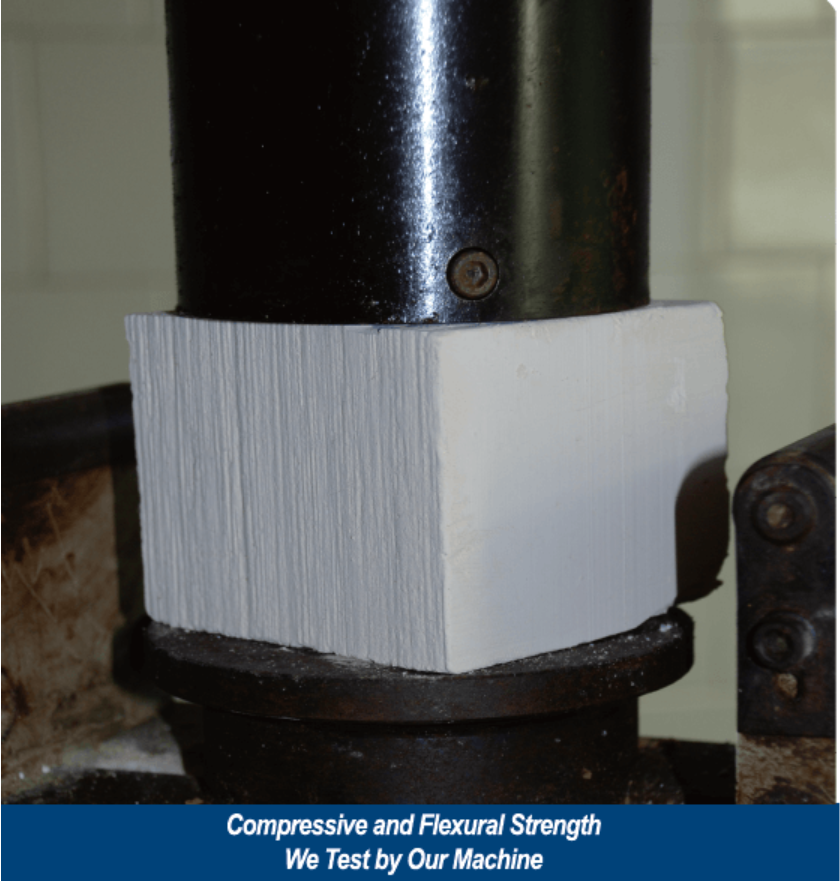

Compressive and Flexural Strength
We Test by Our Machine
| ASTM C 411 Max. Service Temperature | 650°C |
| ASTMC533 | Type I |
| ASTMC795 | Passed |
| ASTMC411 | Passed |
| ASTM C 203 Flexural Strength | 50psi (344Kpa) |
| ASTM C 165 Compressive Strength | 200psi (1378 Kpa) |
| ASTM C 356 Linear Shrinkage | After 24-hr Less Than 2.0% |
| ASTM E 84 Surface Burning Characteristics | 0/0 |
| GB/T10699-1998 | Passed |

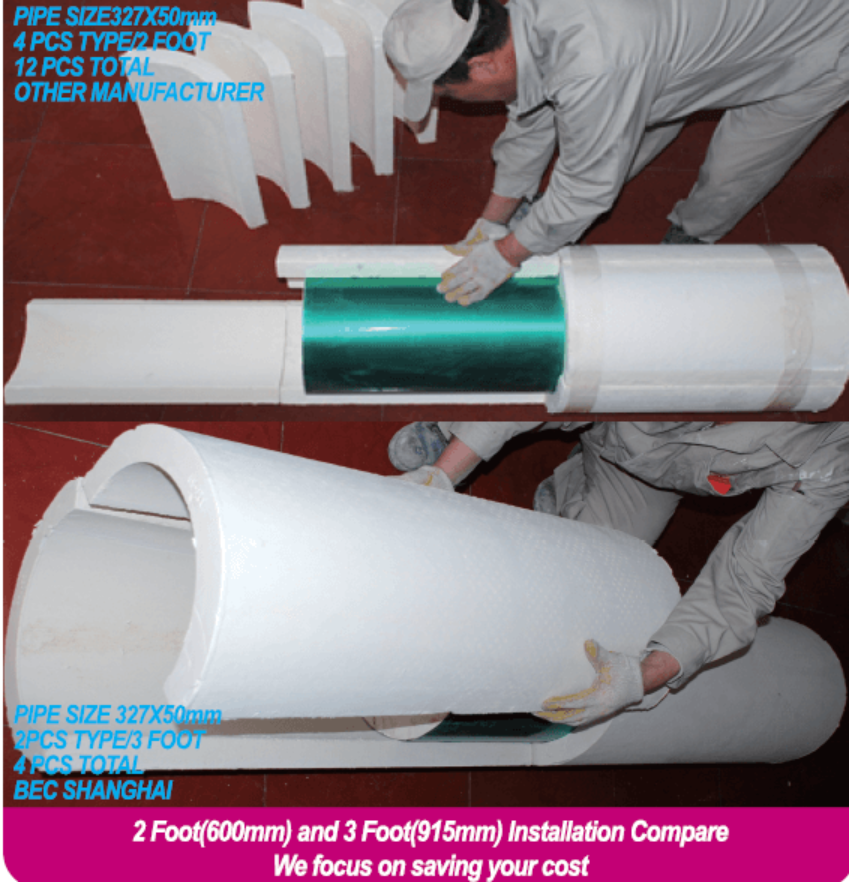

2 Foot(600mm) and 3 Foot(915mm) Installation Compare
We Focus on Saving Your Cost
DESCRIPTION
In order to save the labor cost and make effiencicy installations on the jobsite, we design the new moulds of calcium silicate which can not only meets the ASTM C533, but also exceed current GB/T10699-2015 specifications.
For the same size materials which is built to the steel pipe can be used not only with less pieces but also 30%-70% labor savings. For more technical information ,Please contact us 0086 21 64500049.
ADVANTAGES
• Large selection of sizes Easy Installation
• Less pieces
• Saving Energy

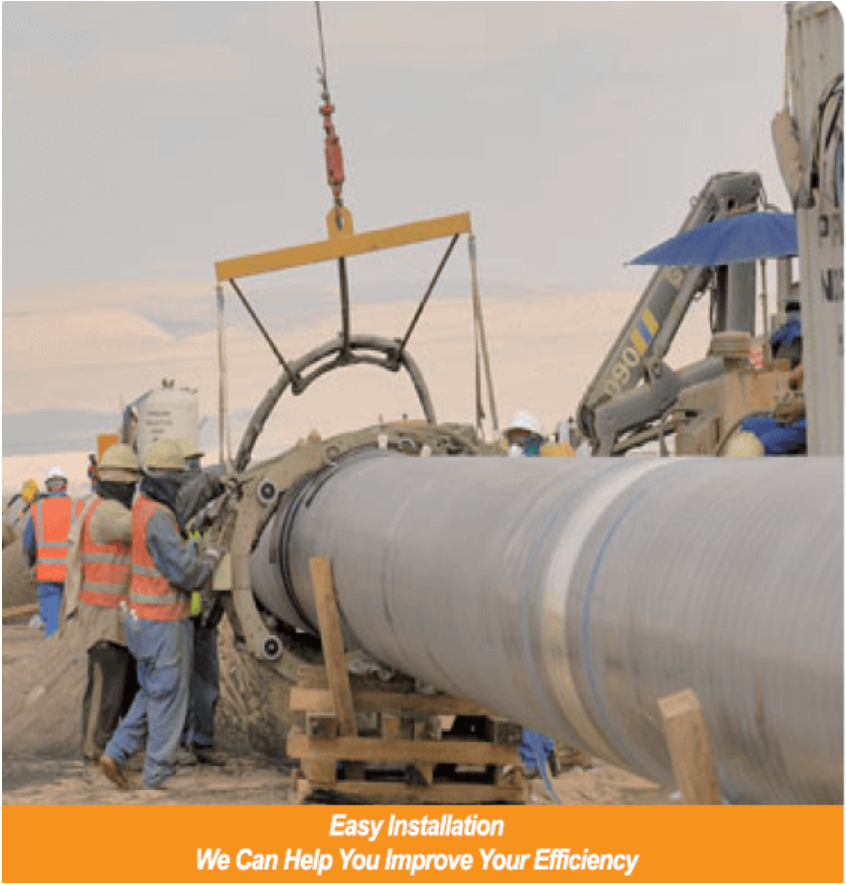

Easy Installation
We Can Help You Improve Your Efficiency
DESCRIPTION
Compared with the Current China Standard: GB/T10699-1998 specifications and ASTM C585, We can help you save the labor average cost from 30% to 70%.
| Size Tablets | 2 Foot | 3 Foot | |
| Size(inch) | Size(mm) | Pcs/Set | Pcs/Set |
| 1/4″-6″ | 15-171 | 2 | 2 |
| 7″-10″ | 196-275 | 3 | 2 |
| 11″-14″ | 300-358 | 4 | 2 |
| 14″-20″ | 358-511 | 6 | 4 |
| 21″-28″ | 529-715 | 8 | 4 |
| 28″-30″ | 715-762 | 10 | 4-6 |
| 31″-34″ | 800-862 | 10 | 6 |
| 34″-40″ | 862-1020 | 12 | 6-8 |
| 42″-126″ | 1073-3200 | 14-36 | 8-24 |

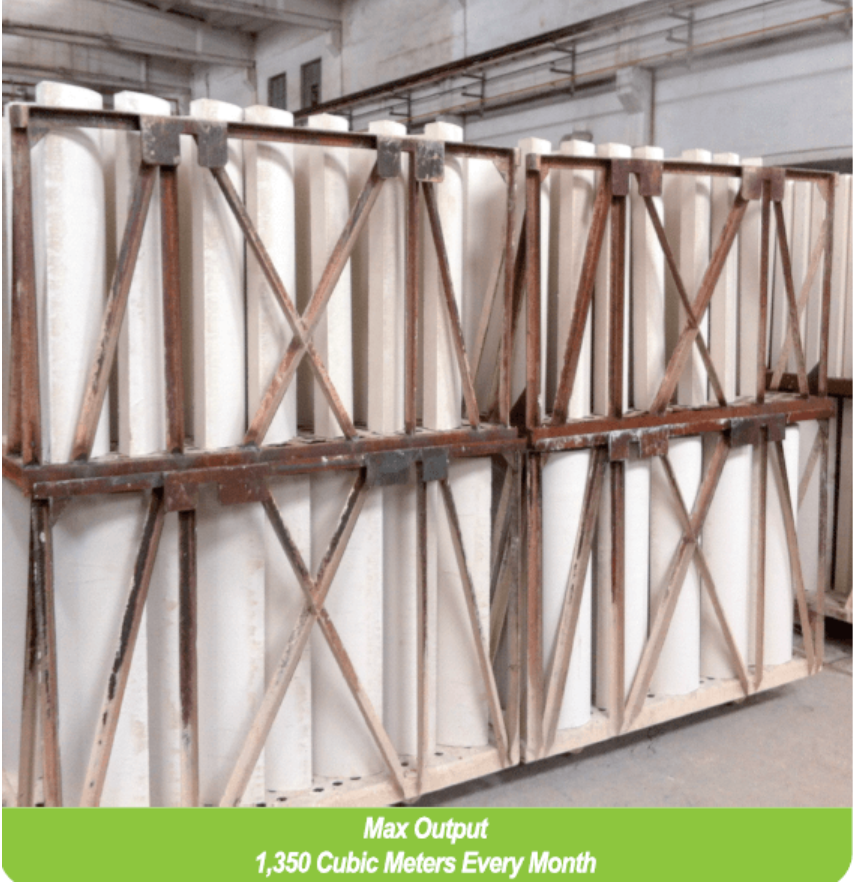

Max Output
1,350 Cubic Meters Every Month
DESCRIPTION
In order to improve the max capacity we design the new trolleys with double
levels which extremely improve the output every day which also can be saved the steam energy for dryer.
ADVANTAGES

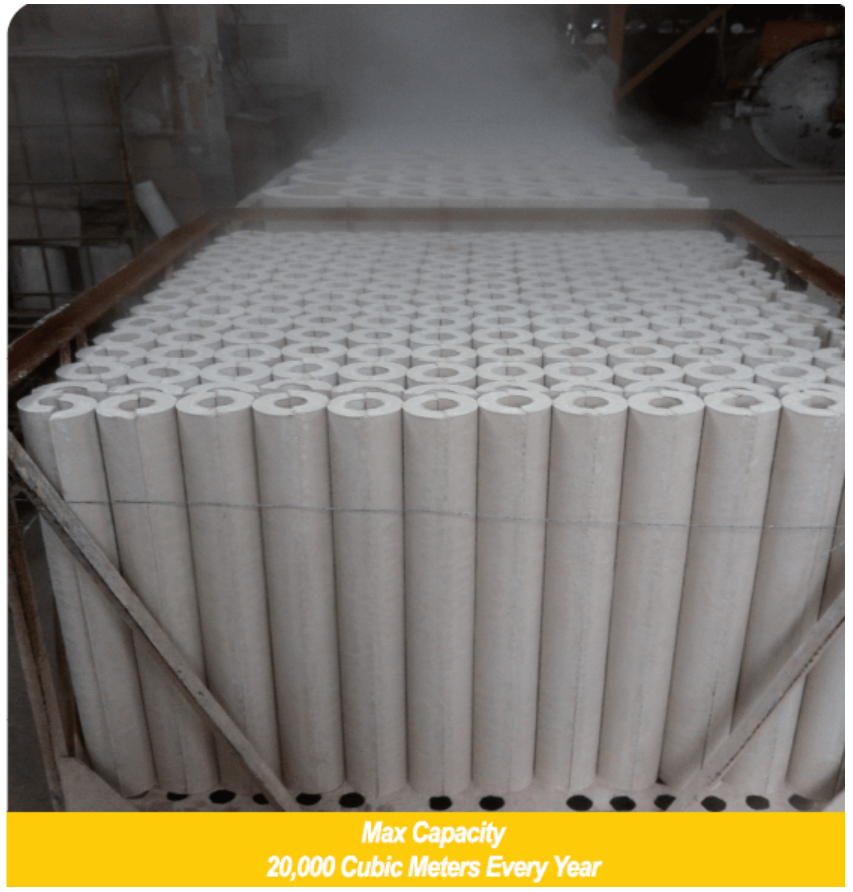

Max Capacity
20,000 Cubic Meters Every Year
DESCRIPTION
CS-0.1 Calcium Silicate is a molded, high temperature, abuse-resistant pipe and block insulation with exceptional structural strength, composed of hydrous calcium silicate for use on systems operating up to 1200°F (649°C). The white color provides positive identification that it is asbestos-free. CS-0.1 meets or exceeds the physical property requirements of ASTM C 533, Type I and GB/T10699-1998.
ADVANTAGES
• Four pieces from the equipment every 2 minutes
• 40*40″ High Cubic Containers every month
• 1,350 Cubic Meters Every Month
• 25,000 Cubic Meters Design Every Year
BEC Industrial (Shanghai) Co., Ltd, was formed to succeed the joint venture known as IIG Shanghai and originally the Shanghai Electric Power and Machine Works (SEPMW). This factory located in Shanghai was the first Chinese manufacturer of calcium silicate thermal insulation that meets ASTM C533 type I and produced to the dimensional tolerances of ASTM C585.
